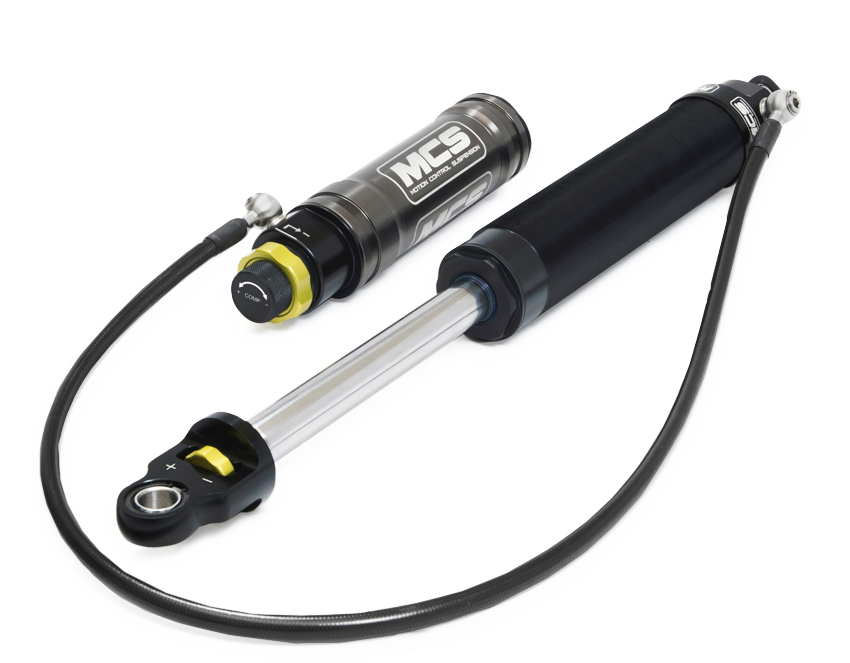

MCS 3WR

The MCS 3WR damper is a 3-way adjustable suspension system with external reservoirs that allow for precise gas pressure adjustment. It features independently adjustable high-speed compression, low-speed compression, and rebound damping, giving drivers ultimate control over chassis dynamics.

High-speed compression is managed by a proprietary blow-off valve on the reservoir piston, while low-speed compression and rebound damping are finely tuned through precision-engineered orifices, delivering accurate hydraulic control and a broad adjustment range for different road conditions.

Reservoir pressure is adjustable between 6 and 18 bar via a Schrader valve, enabling fine-tuning of vehicle platform support during high-speed cornering or allowing increased weight transfer for enhanced traction in low-grip scenarios.

The monotube construction provides exceptional stability, with increased oil capacity and superior heat dissipation compared to twin-tube dampers. Large-diameter shafts ensure low-friction side-load support, while a divider piston prevents cavitation, ensuring consistent damping performance

For sustained performance in long races and street driving, remote reservoirs improve fluid temperature control and can be specified with Staubli dry-break fittings for fast, hassle-free installation and service.

Technical Features
Low Speed Compression
High Speed Compression
Nitrogen Pressure Schrader Valve
Rebound Adjuster

Adjustability

The MCS 3WR damper is a 3-way adjustable suspension system featuring 18 clicks of high-speed compression, 10 clicks of low-speed compression, and 18 clicks of rebound adjustment. Its application-specific valving is designed to perform seamlessly with a wide range of spring rates, eliminating the need for frequent re-valving.
Each adjustment delivers clear, precise feedback, allowing for accurate and repeatable suspension tuning.

The damper is supplied with a high-performance linear piston as standard, with an optional digressive piston available for drivers seeking a different damping characteristic and greater tuning flexibility.

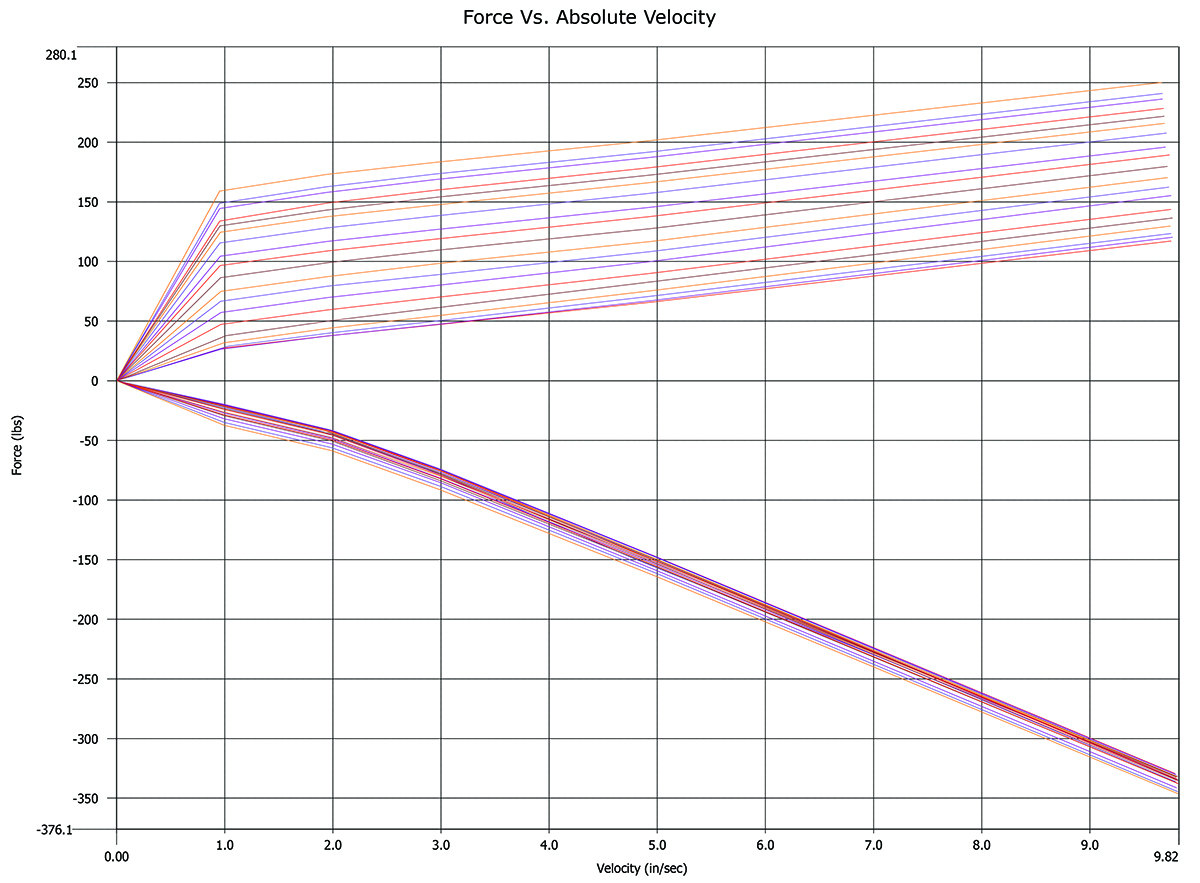

18 Clicks of High Speed Compression Adjustment

On the MCS 3WR damper, high-speed compression damping can be precisely adjusted with 18 distinct settings. This allows drivers to increase platform support by fine-tuning damping forces during high-speed shaft movements. By optimising this behaviour, the suspension makes better use of the mechanical contact patch, improving grip, stability.

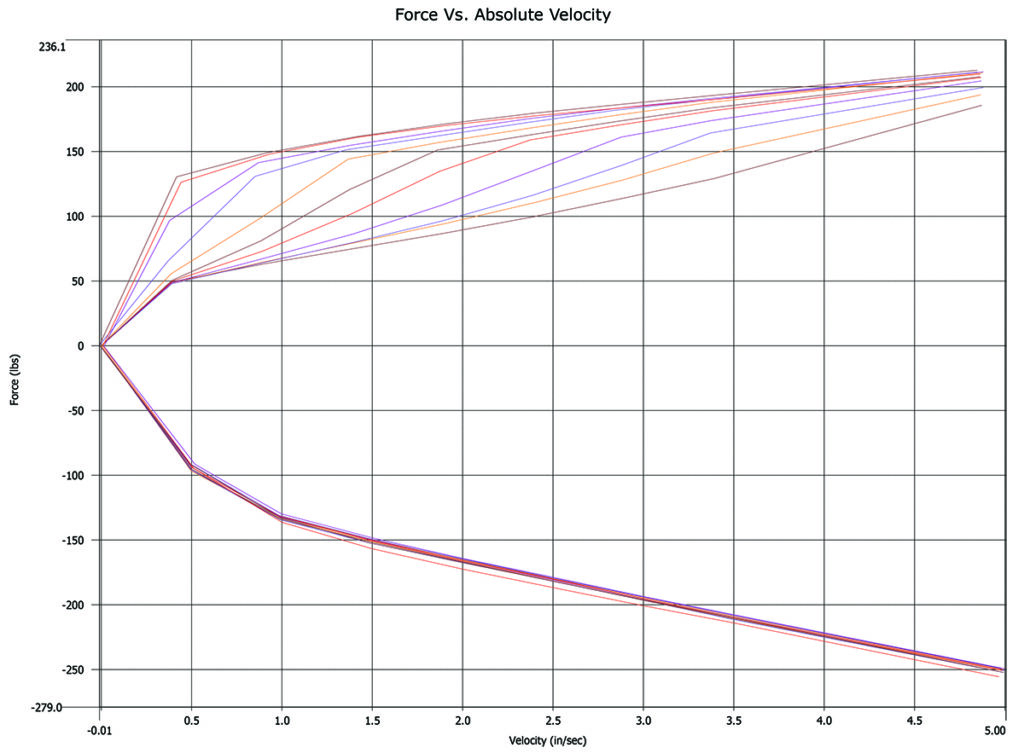

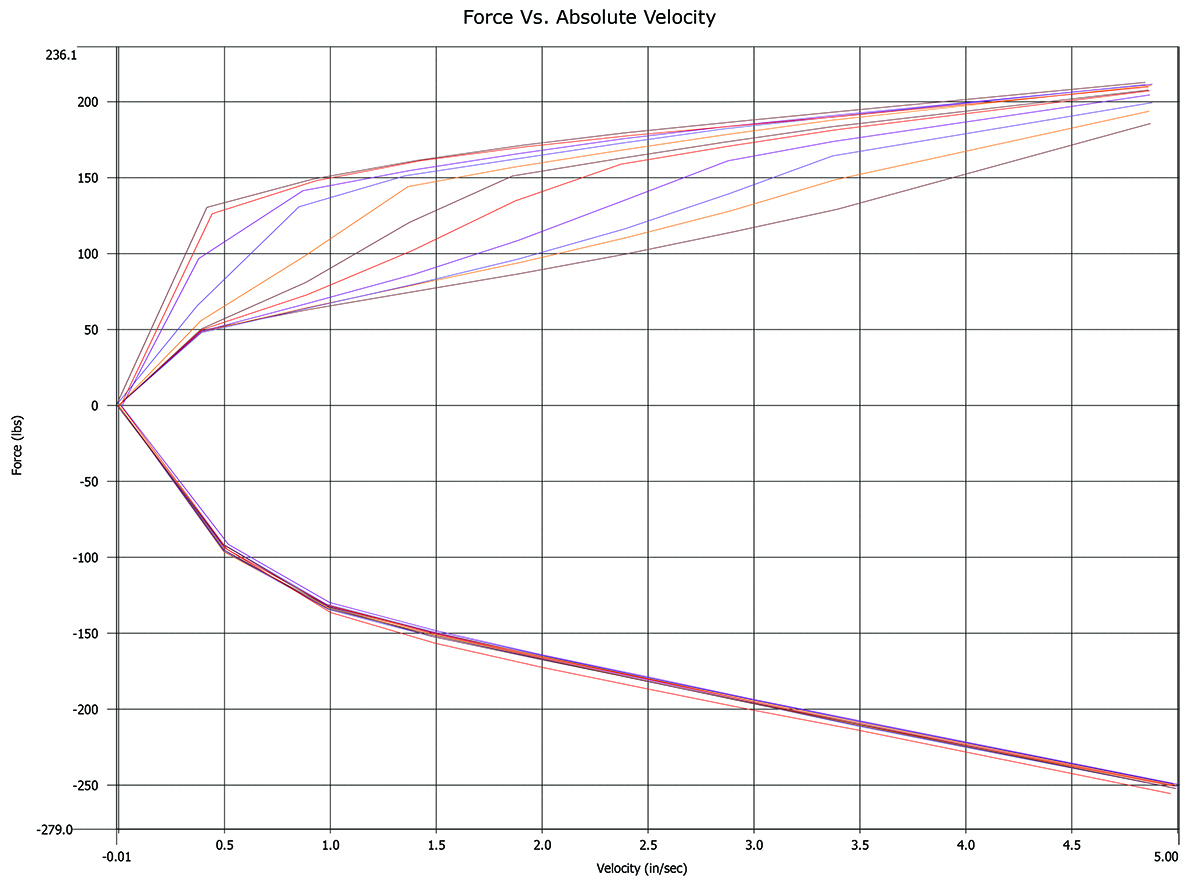

10 Clicks of Low Speed Compression Adjustment

On the MCS 3WR damper, low-speed compression damping can be precisely adjusted with 10 distinct settings. This adjustment allows drivers to finely control vehicle pitch and roll behaviour during low-speed shaft movements, enabling balanced cornering dynamics and improved driver confidence and handling precision.

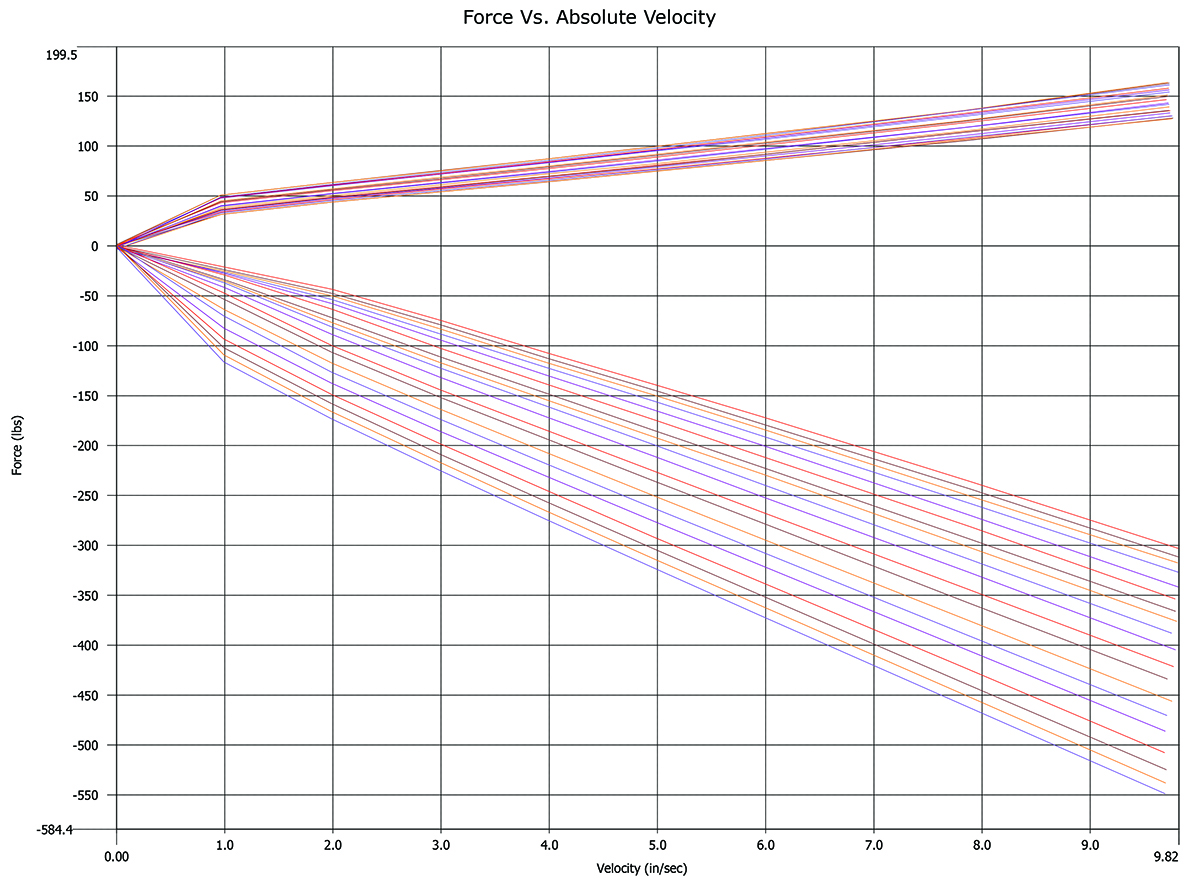

18 Clicks of Rebound Adjustment

With 18 clicks of rebound adjustment, the MCS 3WR damper allows drivers to increase spring control and finely adjust the vehicle’s handling balance. This precise tuning capability helps optimise cornering stability and weight transfer.

Gas Pressure Adjustment

Each remote reservoir on the MCS 3WR damper is fitted with a Schrader valve, providing a powerful tuning tool that allows precise adjustment of nitrogen gas pressure within the damper. By increasing or decreasing reservoir pressure, drivers can alter overall platform support to suit road conditions and driving style.
Reservoir pressure is adjustable between 6 and 18 bar, enhancing chassis stability in high-speed corners and improving weight transfer for maximum traction in low-grip conditions.

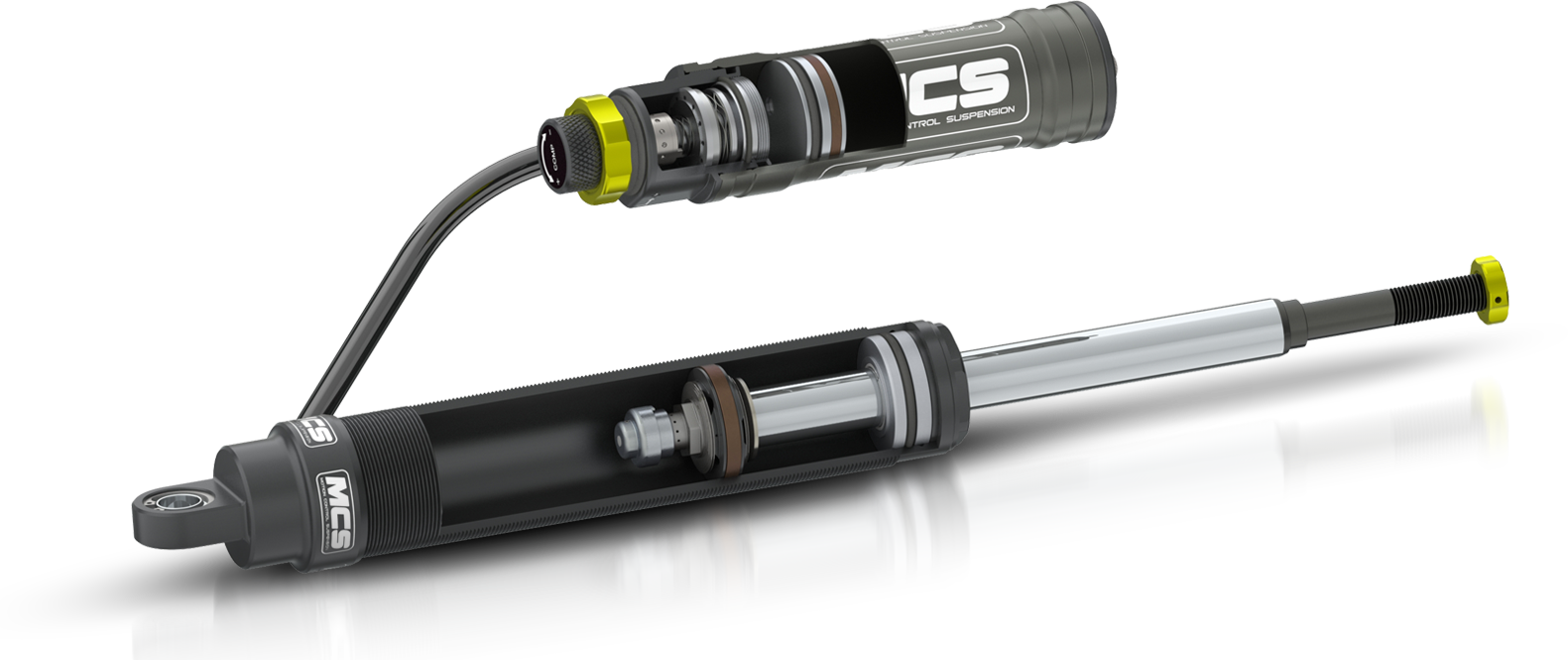

Technical Features

Technical Features
+

LOW SPEED COMPRESSION ADJUSTER KNOB

+

HIGH SPEED COMPRESSION ADJUSTER KNOB

+

LOW SPEED COMPRESSION ORIFICE

+

HIGH SPEED COMPRESSION MAIN PISTON ASSEMBLY

+

DIVIDING PISTON

+

SCHRADER VALVE

+

REBOUND ADJUSTMENT MECHANISM

+

MAIN PISTON ASSEMBLY

+

SHAFT GUIDE

+

SHAFT

+

REBOUND ADJUSTER KNOB

Low Speed Compression Adjuster Knob

Connected to the internal compression adjustment mechanism. Allows user to change low speed compression damping forces easily.

High Speed Compression Adjuster Knob

Connected to the internal compression adjustment mechanism. Allows user to change high speed compression damping forces easily.

Low Speed Compression Orifice

Contains proprietary internal adjustment mechanism for low speed compression damping forces.

High Speed Compression Main Piston Assembly

Contains proprietary internal adjustment mechanism for high speed compression damping forces.

Dividing Piston

Separates the gas cavity from the oil cavity.

Schrader Valve

Make gas pressure changes easily with a shock tool.

Rebound Adjustment Mechanism

Proprietary adjustment mechanism to manipulate rebound damping forces.

Main Piston Assembly

Generates overall valving range. Valving can be manipulated by changing the non-preloaded shim stack configuration on the compression and rebound sides of the piston.

Shaft Guide

Creates additional lateral support on shaft-end side of shaft assembly.

Shaft

Also known as piston rod. Responsible for displacing fluid in the damper body to be controlled by piston assembly and adjustment mechanism. We utilize 22mm diameter shafts for strut and shock applications for remote reservoir systems.

Rebound Adjuster Knob

Connected to the internal rebound adjustment mechanism and allows user to change rebound damping forces easily.
